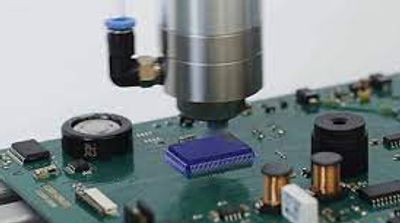

Viscotec eco-PEN
Viscotec eco-PEN is a true volumetric dispensing system that applies the smallest amount of single-component fluids for high precision dispensing technology. Thanks to the proven endless piston principle, watery to pasty liquids are prefectly dispensed. A clean process, reliable dispensing is achieved regardless of fluctuations in viscosity.
Features :
- Operating pressure : 0 to 6 bar
- Viscosity : Watery to Pasty
- 0.12 ml/min to 60.0 ml/min
- Min. dispensing qty : 0.001 ml to 0.060 ml
- Dispensing accuracy : +_ 1%
- Repeat accuracy : > 99%

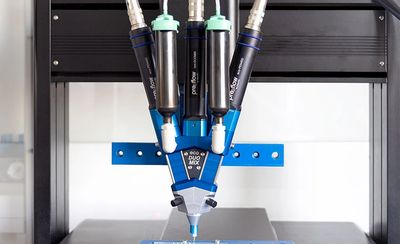

Viscotec eco-DUO
Viscotec eco-DUO is a 2 component mixing and dispensing system. It provides true volumetric output for 2 component materials. The smallest quantities of 2 component fluids and pastes are precisely mixed and dispensed. A clean, process-reliable dose is achieved regardless of fluctuations in viscosity
Features :
- Operating pressure : 0 to 20 bar
- Max dispense pressure : 40 bar
- Viscosity : Watery to Pasty
- Volume flow : 0.1 ml/min to 32.0 ml/min
- Min. dispensing qty : 0.005 ml to 0.030 ml
- Dispensing accuracy : +_ 1%
- Repeat accuracy : > 99%
Viscotec eco-SPRAY
Viscotec eco-SPRAY system consists of a revolutionary combination of the proven endless piston principle and a low-flow spray chamber. This guarantees perfect spraying of low to high viscosity material with high edge sharpness.
Features :
- Spray pattern : Round jet (adjustable)
- Spray angle : 15 deg to 30 deg
- Viscosity : Watery to Pasty
- Volume flow : 0.5 ml/min to 6.0 ml/min
- Min spray quantity : 50 micro liter
- Atomized air : 0.1 bar to 6 bar
- Spray accuracy : +_ 1%
- Nozzle dia : 0.2 mm OR 0.3 mm OR 0,5 mm
- Repeat accuracy : >99%
