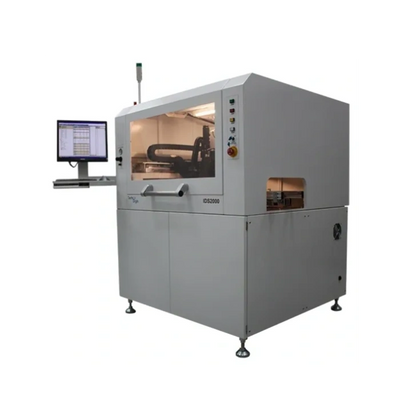

Technodigm IDS2000 automatic dispenser
IDS2000 is suitable for medium to high volume productions. It combines flexibility with practical functionality for the most cost-effective dispensing solution.
IDS2000 is built on a platform that is designed for fast, repeatable and accurate dispensing of a wide variety of materials. It is built using the latest technology on linear actuators and motors with close-loop feedback. It's accuracy and repeatability is extremely good and will meet or exceed the specifications demanded for today's high end dispenseing system.
Applications :
- Gasketting
- Line / Sealing
- Conductive Adhesives
- Dam and Fill
- Cavity Fill
- Underfill
- Chip Encapsulation
- Thermal Compound
- High Speed Dotting
- Microshot Solder Paste
- Edge / Corner Bonding
Features :
- 3, 4 or 5 axis system
- Upto 500mm X 500mm area
- Repeatability : 10 microns for X & Y axis, 0.01 deg for R axis
- Resolution : 1 micron/axis
- Program capacity : Unlimited. Depend on Hard Disk capacity
- Operating System : Windows 10
- Vision System : Integrated
- Drive System : AC Servo Motor + Precision Grade Ball Screw
- Motion Control : PTP and CP
- External I/O : USB, RS232 and Ethernet
- SMEMA compliant
- Power Supply : 230VAC Single Phase, 50Hz
- Air Supply : 5 Bar
Technodigm GR2000 desktop dispenser
GR2000 is a multifunctional dispensing platform created for a diverser range of applications. It is the few desktop platforms that facilitates programmable movement of the dispense vave in X, Y and Z direction instead of moving the product. This eliminates any performance issue or inconvenience in handling heavy substrates. This makes programming much more intutive. The overhead gantry layout also offers flexibility when incorporating tooling and fixture. Each gantry axis is constructed with precision ground structure for rigidity and performance. All GR2000 is equipped with a standard camera for teaching purposes and fiducial alignment. It can be configured with a wide variety of dispense valves to suit different types of dispensing process including two component mixer heads for current application while allowing future upgrades to add on other optional features to enhance its process capability
Applications :
- Gasketting
- Line / Sealing
- Conductive Adhesives
- Dam and Fill
- Cavity Fill
- Underfill
- Chip Encapsulation
- Thermal Compound
- High Speed Dotting
- Microshot Solder Paste
- Edge / Corner Bonding
Features :
- 3, 4 or 5 axis system
- Upto 400mm X 400mm area
- Repeatability : 10 microns for X & Y axis, 0.01 deg for R axis
- Resolution : 1 micron/axis
- Program capacity : Unlimited. Depend on Hard Disk capacity
- Operating System : Windows 10
- Vision System : Integrated
- Drive System : AC Servo Motor + Precision Grade Ball Screw
- Motion Control : PTP and CP
- External I/O : USB, RS232 and Ethernet
- Power Supply : 230VAC Single Phase, 50Hz
- Air Supply : 5 Bar
