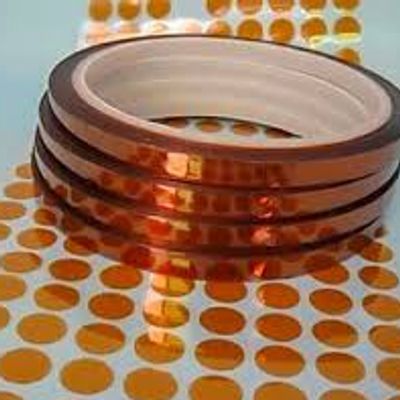

POLYMIDE (KAPTON) TAPE
Polymide (Kapton ) Tape
Polyimide Tape is made up with 1 or 2 mil polyimide film carrier coated with high quality pressure sensitive silicone adhesive. It has high performance, reliability and durability, with a unique combination of electrical, thermal, chemical and mechanical properties that withstand extreme temperature, vibration and other demanding environments.
Application Usage:
*High temperature masking.
*Protection of circuit board gold finger contacts during wave solder or solder dip process.
*Insulation on bobbins, transformers, motors, capacitors, circuit boards and coils.
*Used in fiber optics cables & solar panels.
*Insulates the parts of aircraft trains, automotive sensor, manifolds and special
electronic components.
*Used for power switch motor relay cable coil capacitance and lithium battery, SMT surface
mounting, transformer manufacturing, etc.
Features:
*Provides excellent electrical, thermal, physical and chemical properties.
*Thin and conformable enabling masking of uneven surfaces.
*Removes cleanly without adhesive residue after exposure to heat.
*High strength backing provides superior resistance to puncture and tear.
*Resistance to solvent & chemical attack.
*Wide operating temperature range up to 230o C.
*Silicon adhesive protection leaves no residue.
COPPER FOIL TAPE
Copper Foil Tape
Copper Foil Tape is made up with copper foil carrier coated with high quality acrylic conductive adhesive laminated with paper release liner. Electric signal shielding mainly depends on excellent electrical conductivity of copper and magnetic shielding requires conductive material “nickel” of adhesive surface to achieve the function of magnetic shielding.
Application Usage:
*Mainly used in electromagnetic shielding, sub-electric signal shielding and magnetic
signal shielding.
*Widely used in mobile phones, computers, laptops and other digital products.
*Suitable for all kinds of transformers, PDAs, PDPs, LCD monitors, notebook computers,
photocopiers and other electronic products within the electromagnetic shielding.
*Ideal for use in grounding, soldering application and RFI / EMI shielding application in the
electrical and electronic industries.
Features:
*Provides a very low rate of electrical resistance and is conductive in nature.
*Aggressive acrylic adhesive forms a permanent bond to low surface energy materials.
*The malleable copper foil conforms well to irregular shapes and surfaces.
*It is chemically resistant to oxidation, corrosion and discoloration.
*Pressure sensitive acrylic adhesive is conductive using nickel and copper.
*Good high and low temperature resistance.
*Easy unwind & can be easily soldered.
THERMALLY CONDUCTIVE TAPE
Thermally Conductive Tape
Thermally Conductive Tape is made out of glass fabric cloth as substrate double coated with thermal conductivity acrylic pressure-sensitive adhesive. It has features of high thermal conductivity and insulation, and has flexibility, compressibility, docility, strong adhesion. Adapt to temperature range, can fill the uneven surface, can be closely and firmly fit the heat source devices.
Application Usage:
*Mainly apply on CPU, LED, PPR heat sink, microprocessor.
*Power consumption semiconductor.
*Replacing screws, fasteners and other fixed means.
*Fixing heat sink on the power supply circuit board, vehicle control circuit board and
package chips.
*Electronic appliances, LED lighting, hardware industry, printing industry and other
manufacturing industries.
Features:
*Excellent thermal conductivity.
*Glass fiber high temperature tape.
*Flexibility, adaptability and excellent bonding strength.
*Broad operating temperature range.
*Various sizes available.
*Heat sink thermal tape & Radiator heat tape.
*Stable performance, & low cost.
*Tearing resistance and break-down resistance.
*Improve the shelf life for electronic components.
*Easy to die-cut in any custom shape design.
ACETATE CLOTH TAPE
Acetate Cloth Tape
Acetate Cloth Tape is a thick tape composed of an acetate cloth backing coated with a solvent acrylic pressure sensitive adhesive. It provides a very stable adhesion on wire coil and glass surface. The acetate cloth can withstand a high tensile strength and having an extremely conformable, rough and absorbent surface. The tape is hand tear-able which makes it easy to use and the available colors include white and black.
Application Usage:
*Mainly used in transformer, motor, coil capacitor and wiring harness.
*Inverter power supply winding insulation material.
*Outer Coil Winding.
*Cable Fixing.
*Electrical Equipment Repairing
Features:
*High temperature resistance.
*Anti-aging.
*Strong adhesive force.
*Good insulation performance.
*Flame retardant.
*Excellent Conformability.
*Flexible.
*Designed for continuous operation not exceeding 120°C.
ALUMINUM FOIL TAPE
Aluminum Foil Tape
Aluminum Foil Tape is made up with soft aluminum foil coated with solvent base acrylic adhesive with paper release liner. The aluminum backing offers excellent reflective & waterproof properties, it can be offered without release liner. Easy to handle and apply, conforming to most irregular substrate surfaces. Used for general purpose holding, patching, sealing applications – indoors and outdoors.
Application Usage:
*Moisture barrier, mechanically hold wires and cooling coils in appliances.
*Used in duct insulation systems, sealing, aluminum, stainless and plastic seams / joints.
*Ideal for general repair & fixing components on steel sheets, tubes and temporary repair of
metal surfaces, copper pipe fixing, etc.
*Used to secure duct seams, connections, joints, and sealing hot and cold air ducts.
*Used in appliances, marine and aerospace industries.
*Shielding electrical interferences in cabinets, cables, antennae, etc.
Features:
*Aluminum backing provides excellent reflection of both heat and light.
*Aluminum foil backing provides excellent conformability and resistance to most solvents.
*Easy to handle, easy to apply and readily conforms to irregular surfaces.
*Reduced Waste & Errors of assembly Kits.
*Trouble-free Application & Product Identification.
*Faster Production Time & Better-Quality Products.
*More Precise Cuts with Improved Equipment Performance.
*Overall Cost Savings.
CELL POSITIONING TAPE
Cell Positioning Tape
Cell Positioning Tape or Cell Fixing Tape or Cell Holding Tape is made up with polyester film carrier coated with specially formulated UV resistant acrylic adhesive. It is designed for outdoor UV-cutting application where most of the UV light will be absorbed, so as to impart good light stability. In particular, it is used to position the solar cells before heat sealing.
Application Usage:
*Used for holding up the solar cell in position to prevent their displacement during EVA (ethylene
vinyl acetate) film encapsulation process.
*Secure cells during melt process without discoloring or affecting cell performance.
*Protecting UV sensitive areas during high UV radiation operations such as solar cell position.
*It is used to fix the battery and prevent displacement When the solar panels are
being laminated.
Features:
*PET film that is thin and superior in flexibility.
*Adhesive offers good balance of tack and adhesion with excellent shear strength.
*Tape may not bond or conform to rough or sharply curved surfaces.
*Adhesive will not bubble, blister, discolour, or affect the cells performance during the melting or
evacuation process,
*Adhesion and holding power are reduced at elevated temperatures.

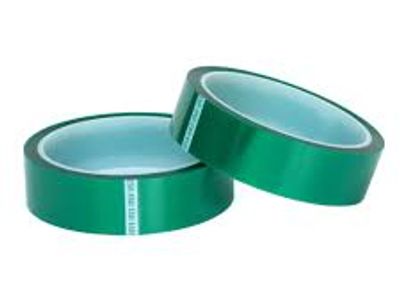

GREEN POLYESTER TAPE
Green Polyester Tape
High Temperature Green Polyester Tape is manufactured from a 2 mil polyester film coated silicone pressure sensitive adhesive. Ideal for masking applications in most of the powder coating, anodizing, and plating processes. withstands up 180°C continuous and can be removed cleanly from all type of surfaces.
Application Usage:
*Widely used for powder coating protection, glass sand blasting protection, paint spray
protection, ordinary surface protection.
*Designed to perform in all phases of masking operations for PCB production.
*Used in anodizing, electronic assembly, E-coating, powder coating, photo splicing, spray
coating, plating, electroplating, high temperature splicing tape applications.
*Used in various automotive and industrial applications.
*Suitable for flash breaker in the aerospace industry.
Features:
*Has good adhesion, leaves no residue after removal.
*Excellent for use as die-cut material on liner,
*Polyester film offers excellent thermal and chemical resistance while maintaining flexibility.
*Translucent green backing provides easy identification and positioning.
*Allows for easy removal without danger of breakage or bath contamination
*High temperature silicone adhesive that withstands 180°C long term.
*Resistance to various acids and chemicals.
POLYESTER FLEECE TAPE
Polyester Fleece Tape
Polyester Fleece Tape is based on soft woven fabric polyester fleece coated with aggressive modified acrylic adhesive. High quality cotton fleece provides good anti-corrosion, anti-abrasion and anti-aging property. It has excellent noise reduction function, flexibility and even unwinding force; hand tear-able. This tape is specially designed for high quality wire harnessing.
Application Usage:
*Specially made for Light weight, flexible and noise damping wire harnesses.
*For manual bundling & cable harnessing in the automotive industry.
*Suitable for sophisticated application in the interior of cars, and can reduce noise because of its
resistance and soft backing.
*For bundling and binding wire harnesses in various applications.
Features:
*Extremely resistant to cold and heat.
*Outstanding rattle suppression properties.
*Excellent sound dampening properties.
*Resistant to ageing and rotting.
*Resistant to ageing and rotting.
*Material is very flexible and tearable by hand
*Innovative design of the carrier material with repellent properties against fluids.
*Soft fabric backing allows the reduction of noise.
POLYESTER CLOTH TAPE
Polyester Cloth Tape
Polyester Cloth Tape is based on polyester cloth coated with aggressive modified acrylic adhesive. High quality polyester cloth provides good anti-corrosion, anti-abrasion and anti-aging property. It has excellent noise reduction function, flexibility and even unwinding force; hand tear-able. This tape is specially designed for high quality wire harnessing.
Application Usage:
*Specially made for Light weight, flexible and noise damping wire harnesses.
*For manual bundling & cable harnessing in the automotive industry.
*Suitable for sophisticated application in the interior of cars, and can reduce noise because of its
resistance and soft backing.
*For bundling and binding wire harnesses in various applications.
Features:
*Extremely resistant to cold and heat.
*Outstanding rattle suppression properties.
*Excellent sound dampening properties.
*Resistant to ageing and rotting.
*Good Resistance to high temperatures, chemicals and motor vehicle operating fluids.
*Material is very flexible and tearable by hand
*Innovative design of the carrier material with repellent properties against fluids.
*Soft fabric backing allows the reduction of noise.
